Case study
WhatsApp Lead Alert & AI Data Analyst Bot
Built an internal WhatsApp-based lead monitoring and AI analytics system for a fintech business, combining scheduled CRM alerts, anomaly detection, natural-language-to-SQL querying, chart generation, and automated reporting.
- Project context
- Corporate Project
- Year
- 2025
- Categories
- AI Agent, Data Analytics, Automation, CRM Operations
- Source code
- Not publicly available
- Technology stack
- Python, FastAPI, Pandas, SQLAlchemy, PostgreSQL, Matplotlib, OpenRouter, Google Gemini, Google Sheets API, Node.js, Express, whatsapp-web.js

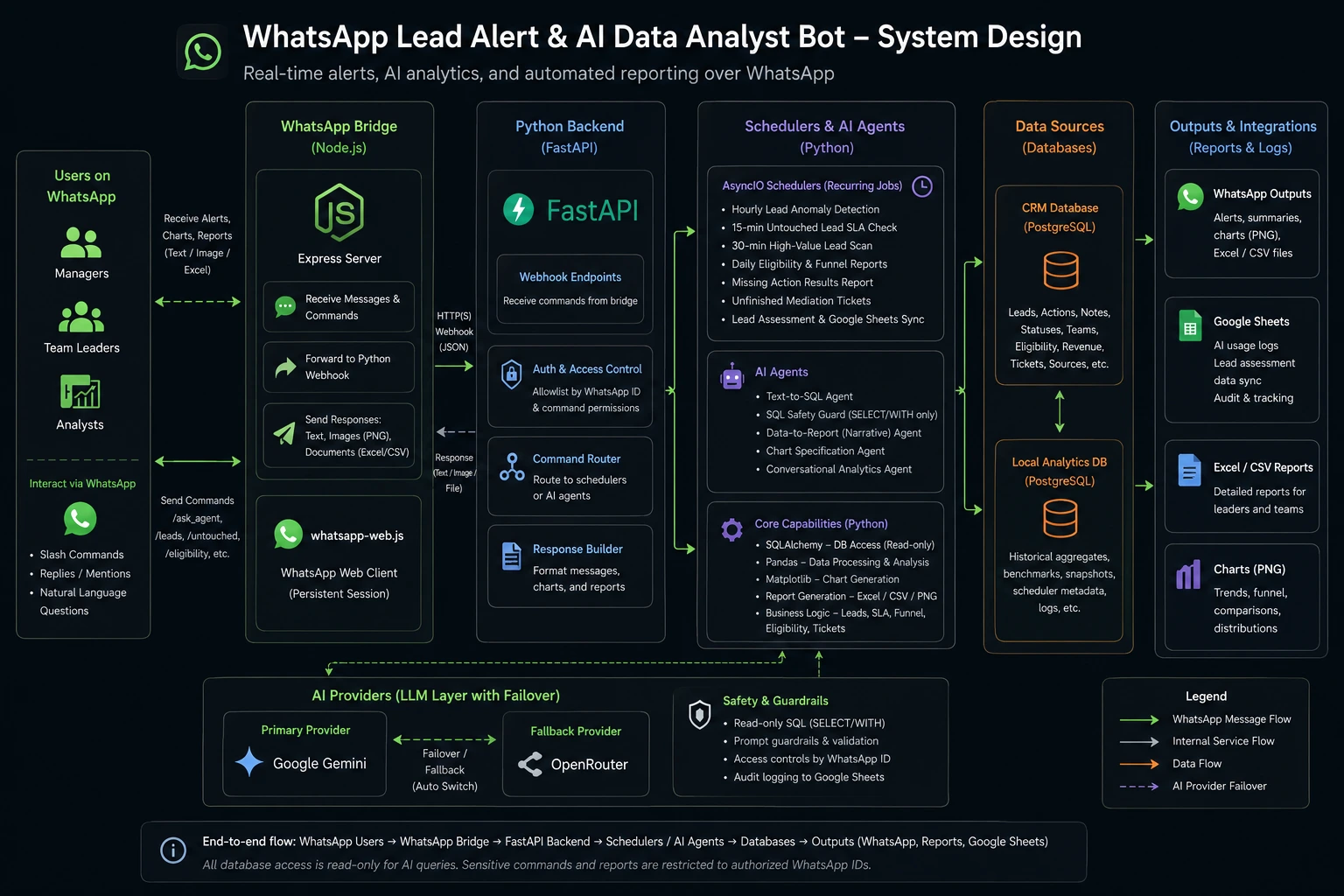

System design
A public-safe view of the components, integrations, and data flow described in this case study.
Scroll horizontally to inspect the full diagram, or open it full size.
Problem
Sales and operations teams needed faster visibility into CRM lead issues, high-intent opportunities, and follow-up gaps. Important signals were spread across CRM tables, manual checks, and ad hoc analysis, which made it easy to miss lead spikes, lead drops, untouched leads, incomplete action logs, uncontacted customers, and unfinished mediation tickets. The business also needed non-technical stakeholders to ask operational and revenue questions without writing SQL, while still keeping database access controlled and read-only.
Role
Abdul owned the end-to-end design and implementation of the internal alerting and analytics bot, including: - Designing the WhatsApp-first operational workflow for managers, team leaders, and analysts. - Building the Python backend for scheduled checks, data processing, reporting, and command handling. - Implementing SQL-based CRM monitoring logic for leads, actions, eligibility, revenue, and tickets. - Creating AI agents for text-to-SQL, narrative reporting, chart selection, and conversational analytics. - Integrating multiple LLM providers with model switching and failover behavior. - Building the Node.js WhatsApp bridge used to receive commands and send messages, charts, and Excel/CSV reports. - Adding Google Sheets logging/reporting for AI usage and lead assessment outputs. - Applying access controls so sensitive reports and AI analytics are limited to authorized chats/users.
Architecture
The system is split into two main services: 1. **Python analytics backend** - FastAPI receives WhatsApp command webhooks. - An asyncio scheduler runs recurring operational checks. - SQLAlchemy connects to CRM and local PostgreSQL databases. - Pandas performs transformations, anomaly checks, funnel calculations, and report preparation. - Matplotlib generates chart images. - Google Sheets integration logs AI usage and publishes lead assessment data. 2. **Node.js WhatsApp bridge** - Express exposes local endpoints for sending text, images, and documents. - whatsapp-web.js connects to WhatsApp Web using a persistent local session. - Incoming slash commands, replies, and bot mentions are forwarded to the Python webhook. - The bridge supports sending WhatsApp messages, PNG charts, and Excel documents. The AI layer uses dedicated prompt agents for: - Natural-language-to-SQL generation. - Data-to-report summarization. - Chart specification generation. - Conversational data analysis. A router selects the primary AI provider and falls back to a secondary provider when needed.
Implementation
Key capabilities implemented in the codebase include: - **Lead anomaly detection:** compares today’s cumulative hourly lead volume by source against historical averages and flags major drops or spikes. - **Untouched lead monitoring:** finds open leads with no action after 60 minutes and routes detailed alerts to relevant team leaders. - **High-potential lead detection:** parses CRM note parameters, extracts debt-related values, identifies high-value cases, and sends team-specific alerts. - **Virtual consultant lead parsing:** extracts call time, debt summary, alternate WhatsApp numbers, domicile, and other details from structured/unstructured lead notes. - **Eligibility and contactability reporting:** classifies leads as contacted, uncontacted, never connected, eligible, or not eligible, then compares current-month performance against six-month historical averages. - **Missing action-result reporting:** identifies cases with actions or status movement but missing logged outcomes, then sends Excel files and summaries. - **Unfinished mediation ticket tracking:** summarizes open mediation tickets and sends detailed Excel exports to the responsible team. - **Lead assessment reporting:** calculates rolling lead funnel, contacted rate, eligible rate, and success rate, then syncs raw data to Google Sheets. - **AI analyst commands:** supports plain-language questions through `/ask_agent`, with optional chart, CSV, and Excel outputs. - **Security controls:** restricts AI and operational commands to configured WhatsApp IDs and only executes AI-generated SQL that starts with `SELECT` or `WITH`.
Results
The project delivered a practical internal operations assistant that turned WhatsApp into a real-time analytics and alerting interface. Public-safe outcomes: - Reduced dependence on manual CRM checking by automating recurring lead, SLA, and ticket monitoring. - Helped team leaders receive targeted alerts for their own teams instead of broad, noisy reports. - Enabled non-technical stakeholders to ask business questions in natural language and receive summaries, charts, or exports. - Improved operational visibility into lead quality, contact performance, eligibility movement, and unresolved workflow gaps. - Added auditability for AI analytics usage through Google Sheets logging.
